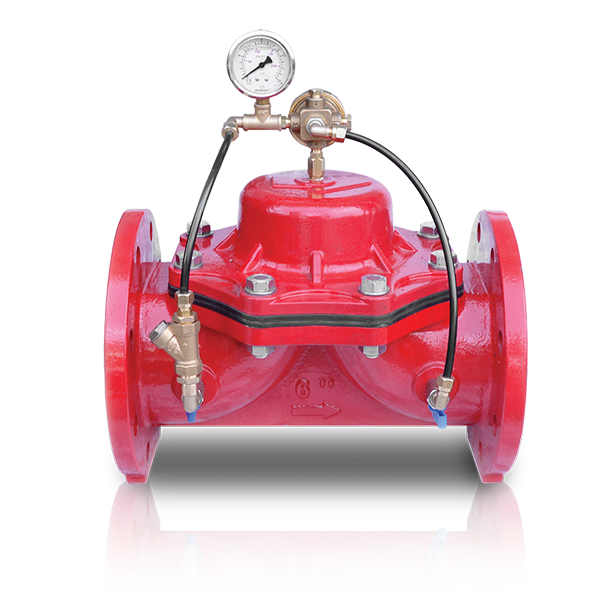

FEATURESPressure fixing control valves are designed to hold the input pressure constant. When the system pressure above the adjustment pressure, valve opens to remain constant inlet pressure. It keeps the input pressure constant without being affected by pressure fluctuations. It is installed at the outlet of the filter in the filtration systems, and enables the system to perform effective backwash.

Technical Specification
•Working with line pressure and not need extra energy
•Easy maintenance
•Classification according to importance of pressure zones
•Line-controlled filling of sloping systems
•Pressure stabilization without affecting the pressure and flow changes in the system

Adjustment
After the water is supplied to the system, if the value displayed on the manometer is below the desired pressure, turn the adjusting bolt clockwise to increase the input pressure. If the value indicated by the manometer is above the desired pressure value, the adjusting bolt is turned counterclockwise and adjusted to the desired pressure. After this, tighten the nut under the adjusting bolt and fix the adjusting bolt.

Installation
- The valve can be install in horizontal / vertical position.
