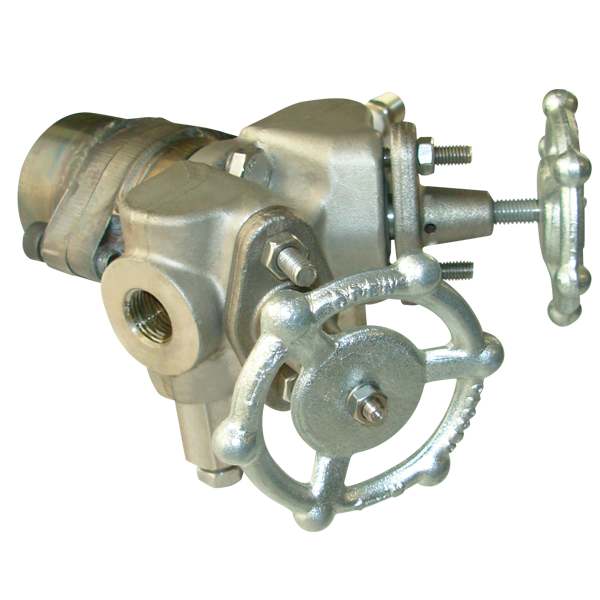

BK-33SK Float Type Pipeline Connector

BK-33SK Float Type Pipeline Connector

BK-33 pipe connector has been developed to be used with the steam traps in steam lines;

BK-33 TD (Thermodynamic)
BK-33 TK (Thermostatic)
BK-33 SK (Float type)
BK-33 BM (Bi-metallic)

BK-33 pipe connector contains 2 piston type valves in the flow direction. Optional test valves for steam trap testing and discharging the pipeline are also available.

Operates constant discharging at saturation temperature especially where the condensate amount is not fixed.

Resistant against the sudden and big pressure changes.
BK-33 SK can easily be disassembled individually and be maintained.
Beside of the float that operates the liquid discharging, air discharging is controlled by the existing thermostatic capsule.
Prevents the water hammer
In case, that the float loses its functionality, thermostatic capsule fulfills the task of condensate discharging.

Operating Conditions:
Max. Operating Pressure: 32 bar
Max. Operating Temperature: 286 °C
Max. Pressure Difference: 4,5/10/14 bar


Drying Units
Steam Jackets

BK-33 SK, float type steam trap can easily be installed to the pipe connector. Usually, float type steam traps are installed horizontally to the steam lines. The flow through the pipe connector should be in the arrow direction.

BK-33SK Float Type Pipeline Connector Prices

To learn the prices of BK-33SK Float Type Pipeline Connector, please visit our contact page.
