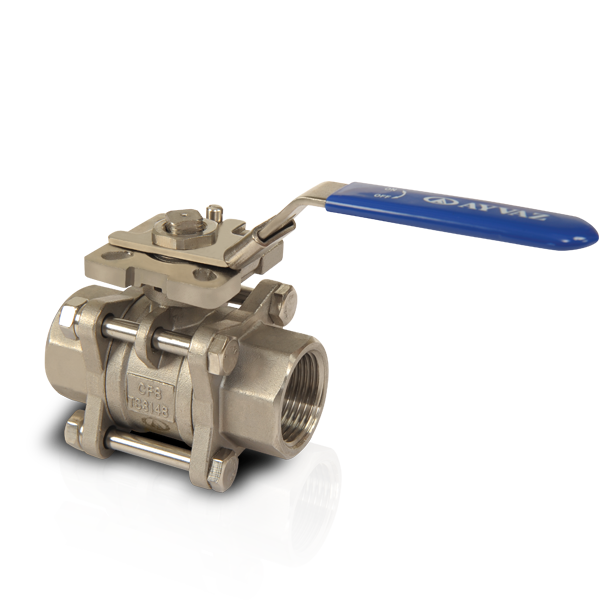

V-3TP Ball Valve

V-3TP Ball Valve

The main part of the ball valve is ball which has a hole in middle. When that ball rotate 90 degree it close or open. They are useful for applications which have to be rapid.

Minimal loss of pressure
Easy to opening and closing
Good leak tightness
Compact design
They tested with water test under 10 bar pressure.
Actuators can assembly easily.

Material Structure:
Body: Stainless steel AISI316 / AISI304
Ball: Stainless steel AISI316 / AISI304


Nominal Diameter:
DN15 (1/2”) - DN100 (4”)

Working Pressure:
Up to 40 bars

Working Temperature:
-10 to 210ºC

Typical Applications:
Heating air-conditioning systems
Food industry Chemical industry
Paper mills

V-3TP Ball Valve Prices

To learn the prices of V-3TP Ball Valve, please visit our contact page.
